INGCO ASG3101 Air Spray Gun 1000CC, 1.5mm Standard Nozzle, 140–180mm Spray Pattern, 3–4 Bar Operating Pressure, with 4 Air Connectors, for Base Coat Painting
The INGCO ASG3101 Air Spray Gun is designed for base coat painting and compatible spray applications. It features a 1000CC paint capacity, a 1.5mm standard nozzle and a spray pattern width of 140–180mm. Operating at 3–4 bar pressure with an air consumption of 119–200 L/min, it is suitable for workshops, painting professionals and maintenance tasks. The set includes Europe, USA, Nitto and Italy type connectors for different air connection systems.
- Estimated Delivery : Up to 3- 4 business days
- Fast & Secure Shipping Across India
The INGCO ASG3101 Air Spray Gun 1000CC is a pneumatic painting tool designed for applying compatible coatings and base coats with an air compressor. Its practical paint capacity, standard nozzle size and adjustable spray pattern make it useful for painting work in workshops, repair facilities and other suitable coating applications.
This spray gun comes with a 1.5mm standard nozzle, designed for compatible paint and coating materials. The specified spray pattern width is 140–180mm, helping cover a working area during application. Actual spray results can vary depending on the coating viscosity, air pressure, spray distance, material settings and surface being painted.
The gun features a 1000CC paint capacity, allowing users to hold a useful quantity of coating during painting tasks. This can help reduce the frequency of refilling during suitable jobs. For consistent results, prepare the paint according to the coating manufacturer’s instructions and ensure that it is compatible with the nozzle and spray gun.
The INGCO ASG3101 operates at a specified pressure of 3–4 bar and has an air consumption range of 4.2–7.1 CFM (119–200 L/min). When choosing an air compressor, ensure it can supply the required airflow at the operating pressure. A compressor’s delivered airflow, rather than tank capacity alone, is important for maintaining consistent spraying performance.
The standard nozzle is 1.5mm, while optional nozzle sizes of 1.2–1.8mm are specified as available. These optional nozzles may support different coating requirements when the correct compatible nozzle is selected. Confirm availability and suitability before purchasing additional nozzle sizes.
The INGCO ASG3101 is a practical option for users who need a pneumatic spray gun with a 1000CC paint capacity, a 1.5mm standard nozzle and multiple connector options for compatible compressed-air systems.
4. Key Features
1000CC Paint Capacity: Holds paint for suitable coating and base coat applications.
1.5mm Standard Nozzle: Designed for compatible paint and coating materials.
140–180mm Spray Pattern: Specified spray pattern width for painting tasks.
3–4 Bar Operating Pressure: Works within the stated operating pressure range.
Air Consumption: Requires approximately 119–200 L/min (4.2–7.1 CFM).
Four Connector Types Included: Europe, USA, Nitto and Italy type connectors.
Optional Nozzle Sizes: 1.2–1.8mm sizes are specified as optional.
Pneumatic Operation: Designed for use with a compatible compressed-air supply.
Base Coat Applications: Suitable for compatible base coat painting tasks.
5. Technical Specifications
| Specification | Details |
|---|---|
| Brand | INGCO |
| Model Number | ASG3101 |
| Product Type | Air Spray Gun |
| Paint Capacity | 1000CC |
| Standard Nozzle Size | 1.5mm |
| Spray Pattern Width | 140–180mm |
| Operating Pressure | 3–4 bar |
| Air Consumption | 4.2–7.1 CFM |
| Air Consumption (Metric) | 119–200 L/min |
| Intended Application | Base coat painting |
| Optional Nozzle Sizes | 1.2–1.8mm |
| Air Connectors Included | Europe type, USA type, Nitto type, Italy type |
| Power Source | Compressed air |
6. Applications
Base coat painting
Automotive and repair workshop painting, where compatible
General workshop coating tasks
Painting compatible surfaces and components
Maintenance and refinishing applications
Always confirm that the spray gun and nozzle are suitable for the specific coating material.
7. Package Contents

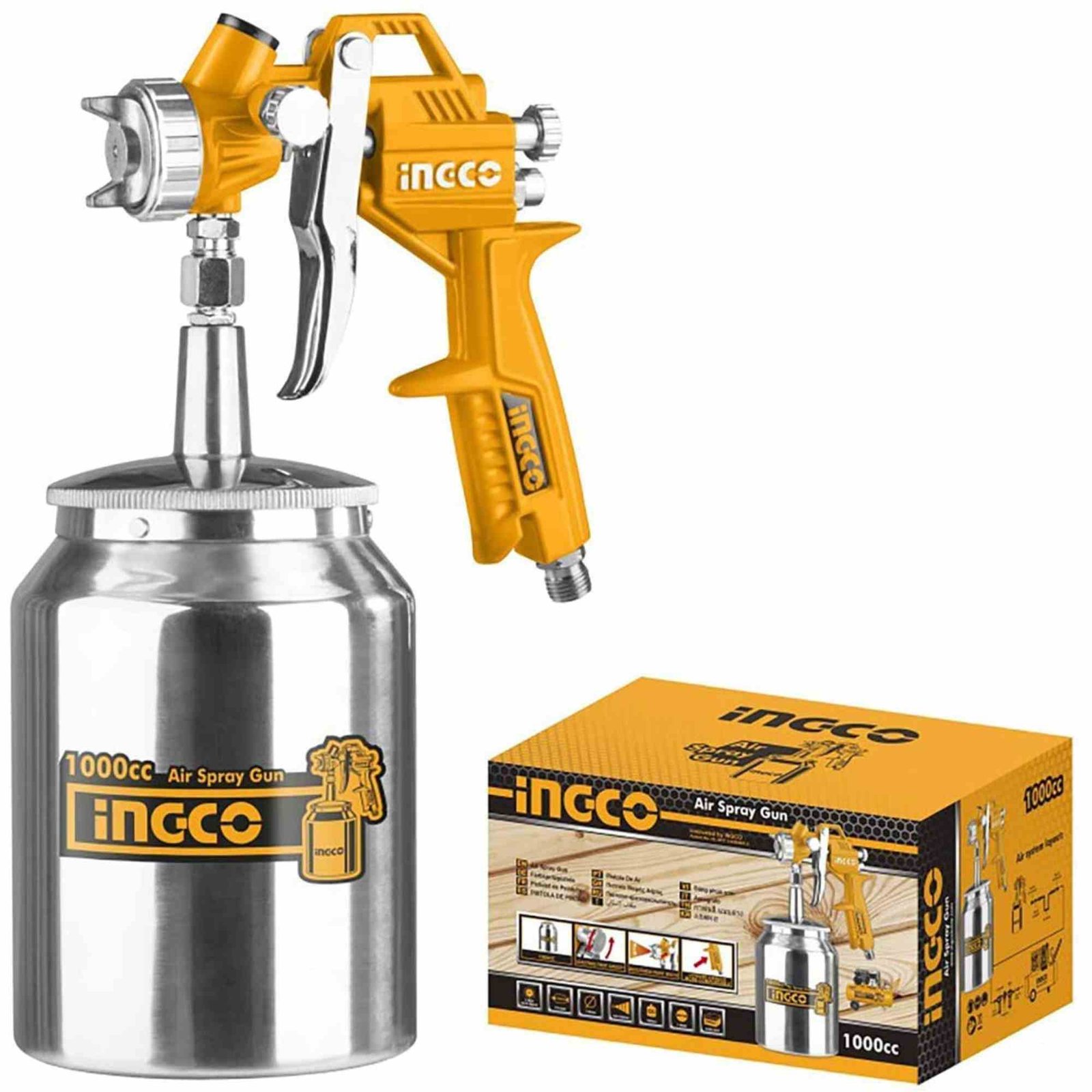

1 × INGCO ASG3101 Air Spray Gun
1 × Europe Type Connector
1 × USA Type Connector
1 × Nitto Type Connector
1 × Italy Type Connector
Optional nozzle sizes are not listed as included in the supplied product specifications.
| Weight | 0.950 kg |
|---|---|
| Dimensions | 23 × 16 × 14 cm |
